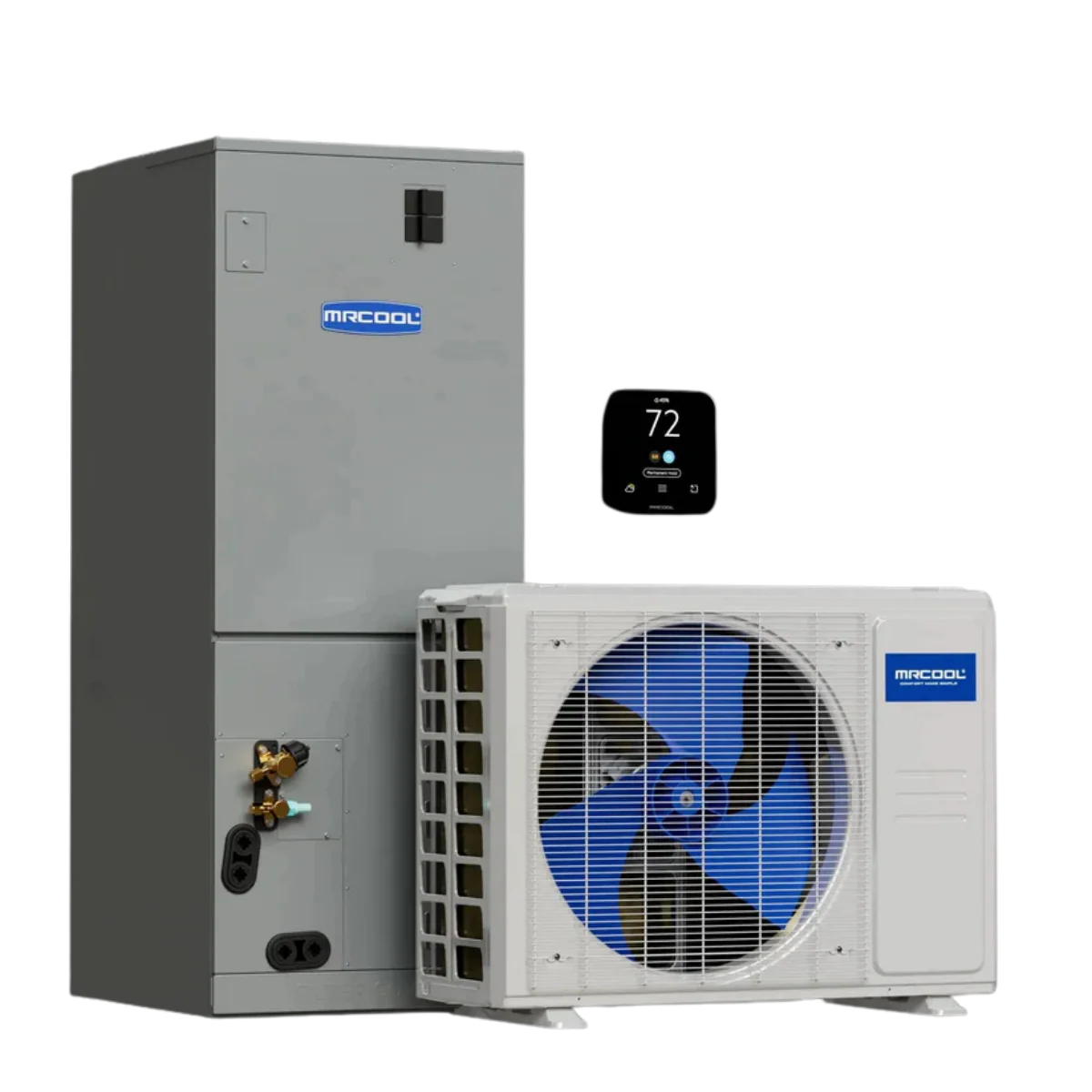

MRCOOL Hyper Heat 2nd Gen 48K BTU 4 Ton 16.5 SEER2 Central Ducted Heat Pump Split System, CENTRAL-48-HP-230B00-O
MRCOOL Hyper Heat 2nd Gen 48K BTU 4 Ton 16.5 SEER2 Central Ducted Heat Pump Split System, CENTRAL-48-HP-230B00-O
MRCOOL Hyper Heat 2nd Gen 48K BTU 4 Ton 16.5 SEER2 Central Ducted Heat Pump Split System – CENTRAL-48-HP-230B00-O
Stay comfortable through every season with the MRCOOL® Hyper Heat 2nd Gen 48K BTU Central Ducted System, engineered to deliver reliable performance even in extreme temperatures. Featuring an impressive SEER2 rating of up to 16.5 and an HSPF2-4 rating of 9.5, this high-efficiency heat pump split system is perfect for homes looking to upgrade to smarter, more sustainable HVAC technology.
Powered by MRCOOL's advanced inverter technology and the latest environmentally friendly R-454B refrigerant, this 4-ton Hyper Heat unit ensures maximum comfort with minimal impact. Compatible with the VersaPro™ Central Ducted Air Handler, this system offers unmatched flexibility, whether you're doing a new install or replacing an outdated system.
Key Features & Benefits:
- Year-Round Comfort: Delivers strong heating and cooling in both sub-zero winters and scorching summers.
- Energy Efficient: Achieve lower utility bills with up to 16.5 SEER2 cooling efficiency and 9.5 HSPF2-4 heating performance.
- Smart Thermostat Control: Easily manage your indoor climate with the included MRCOOL® Smart Thermostat or the SmartHVAC App, compatible with Alexa, Google Assistant, and Siri.
- Quick & Easy Installation: Designed to work with No-Vac® Quick Connect® Line Sets—pre-charged with R-454B refrigerant for faster setup. Copper stub pipes and flare fittings included for traditional installs.
- Versatile Configuration: Compatible with upflow, downflow, and horizontal applications when paired with the VersaPro air handler.
- Eco-Friendly Refrigerant: Uses R-454B, a more sustainable choice with lower global warming potential.
- Durable Build: Heavy-duty painted galvanized steel cabinet resists corrosion and harsh weather.
- Hassle-Free Maintenance: Slide-out blower, compact air handler design, and self-diagnostics panel simplify service and upkeep.
- Peace of Mind Warranty: Covered by an industry-leading 10-year parts, compressor, and labor warranty (labor coverage activates automatically upon installation).
Technical Specs:
- Capacity: 48,000 BTU (4 Ton)
- SEER2: Up to 16.5
- HSPF2-4: Up to 9.5
- Refrigerant: R-454B
- Voltage: 208/230V, 1-Phase, 60Hz
- Compatible Line Set: No-Vac® Quick Connect® (sold separately)
What’s Included:

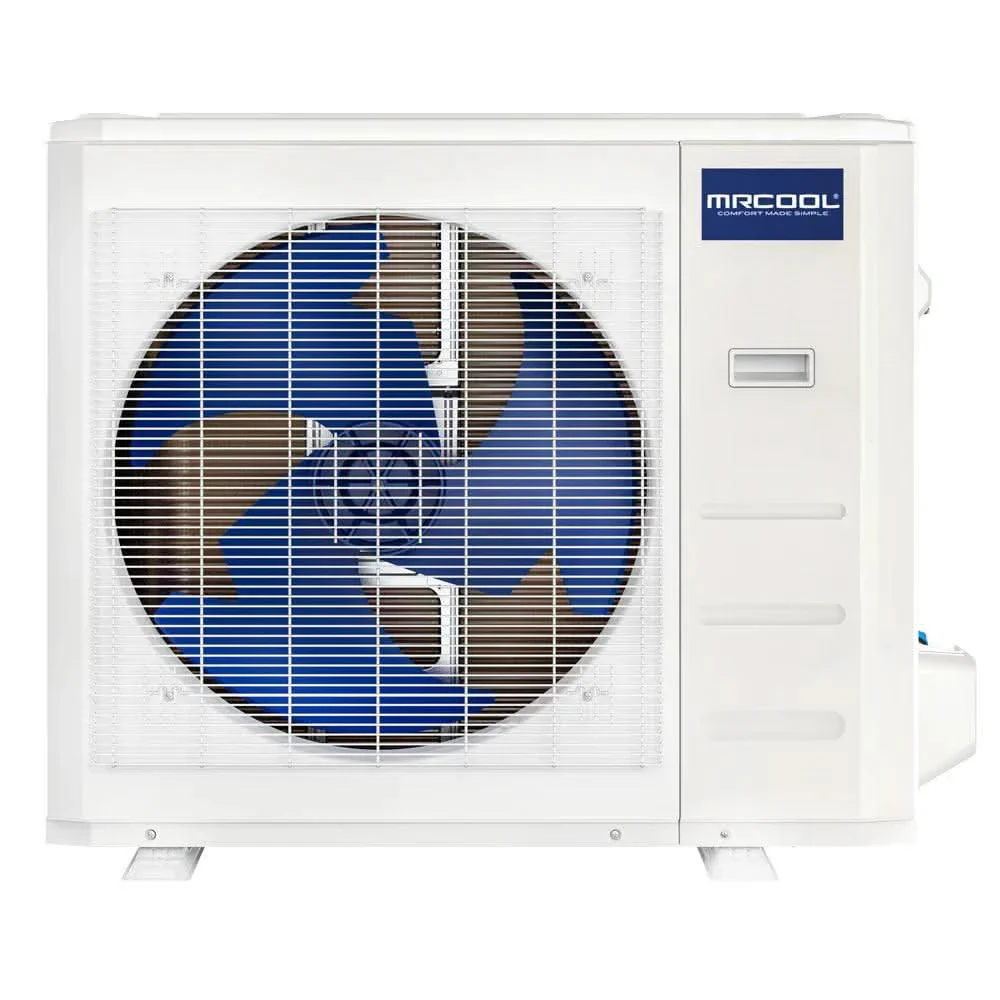

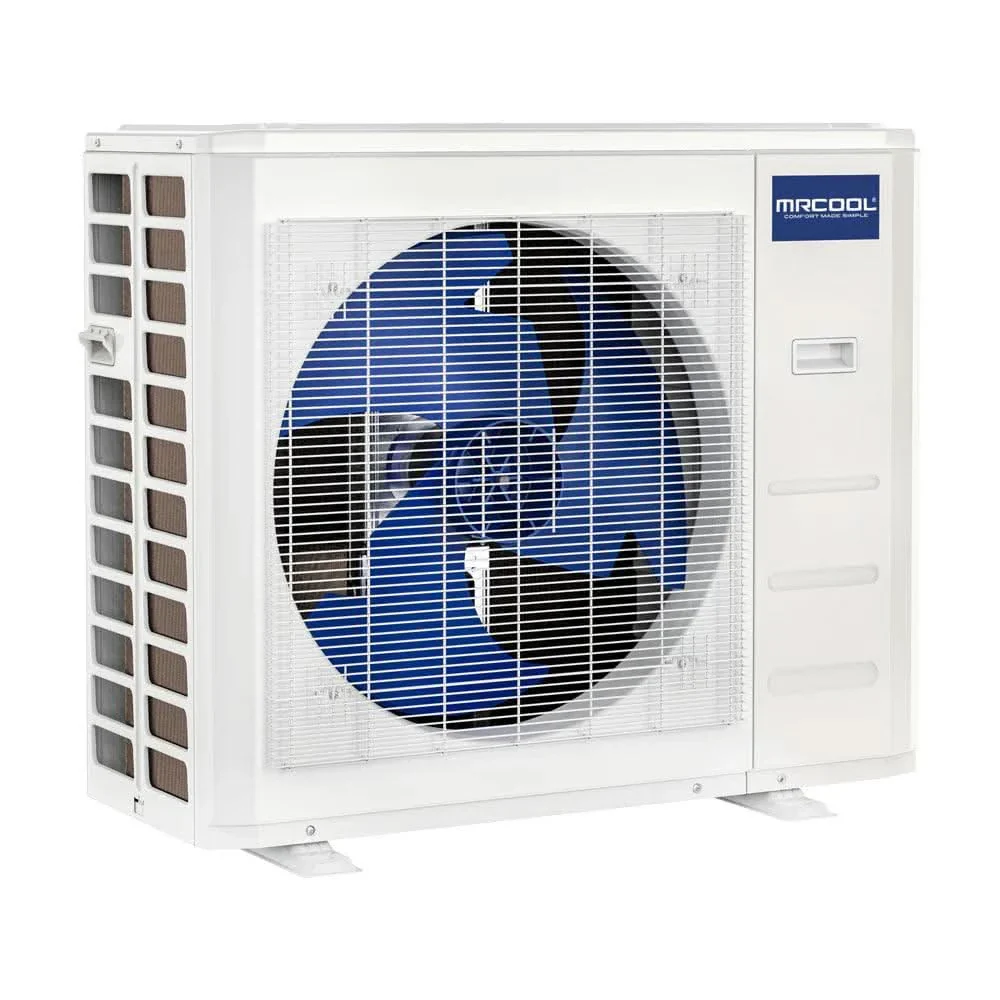

- 48K BTU MRCOOL® Hyper Heat 2nd Gen Outdoor Condenser (CENTRAL-48-HP-230B00-O)
- Stub pipes and flare nut fittings
- MRCOOL® Smart Thermostat
- 10-Year Warranty (parts, compressor, and labor)

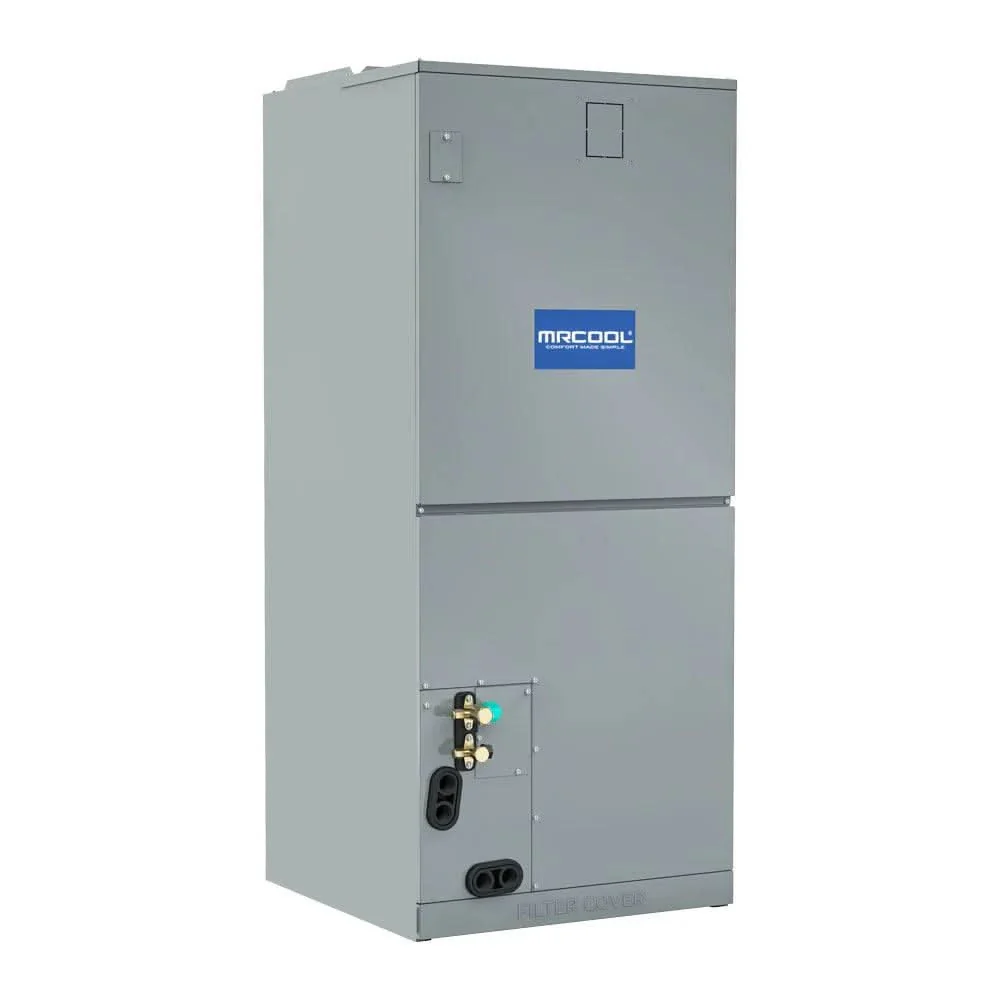

Note: Air handler, line sets, and heat kits are sold separately. For best results, pair with the MRCOOL® VersaPro™ 48K Central Ducted Air Handler.
Why Buy from MRCOOL DIY Direct?
As the USA’s most trusted MRCOOL® dealer, MRCOOL DIY Direct offers unbeatable prices, fast shipping, expert support, and genuine MRCOOL® products backed by real warranties. Whether you're a DIYer or a pro, we’ve got you covered—every step of the way.
Specifications & Dimensions
| Category | Specification |
|---|---|
| Cooling Capacity (Btu/h) | 48,000 |
| SEER2 | 16.5 |
| EER2 | 10.5 |
| Heating Capacity (Btu/h) | 50,000 |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 8.0 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 52 / 50 / 34 dB(A) |
| Outdoor Noise Level | 65.0 dB(A) |
| Power Supply (Indoor) | 208/230V ~ 60Hz, 1ph |
| Power Supply (Outdoor) | 208/230V ~ 60Hz, 1ph |
| Min Circuit Ampacity (Indoor) | 14.5 / 11.0 A |
| Max Fuse (Indoor) | 15 A |
| Min Circuit Ampacity (Outdoor) | 38.0 A |
| Max Fuse (Outdoor) | 40.0 A |
| Indoor Unit Dimensions (WxDxH) | 21.02 x 24.49 x 52.99 in |
| Indoor Packing Dimensions (WxDxH) | 27.95 x 26.77 x 56.50 in |
| Indoor Net/Gross Weight | 162.92 / 190.92 lbs |
| Outdoor Unit Dimensions (WxDxH) | 38.58 x 16.34 x 38.39 in |
| Outdoor Packing Dimensions (WxDxH) | 45.08 x 19.68 x 42.52 in |
| Outdoor Net/Gross Weight | 201.06 / 232.36 lbs |
| Indoor Airflow (CFM Turbo/Hi/Mi/Lo) | 1601 / 1471 / 1283 / 1094 |
| Outdoor Airflow (CFM) | 3037.1 |
| Refrigerant Type | R-454B |
| Refrigerant Charge | 134.04 oz |
| Piping Size (Liquid/Gas) | 3/8" - 3/4" |
