MRCOOL DIY Mini Split - 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM236HPW02C00

MRCOOL DIY Mini Split - 36,000 BTU 2-Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit (DIYM236HPW02C00)

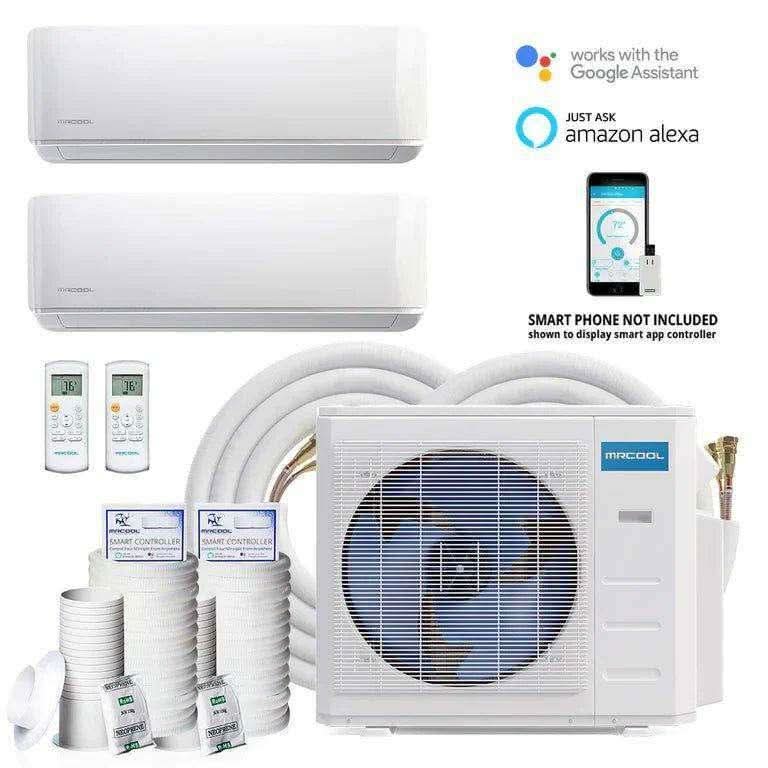

The MRCOOL DIY 4th Gen 36,000 BTU 2-Zone Mini Split System offers a powerful, energy-efficient heating and cooling solution with the convenience of DIY installation. This system includes a 36,000 BTU multi-zone condenser, one 12K BTU wall-mounted air handler, one 24K BTU wall-mounted air handler, and two 16 ft. pre-charged installation kits. With advanced features, smart connectivity, and a sleek design, this mini split system is perfect for heating and cooling two distinct spaces in your home or office.

---

What’s Included

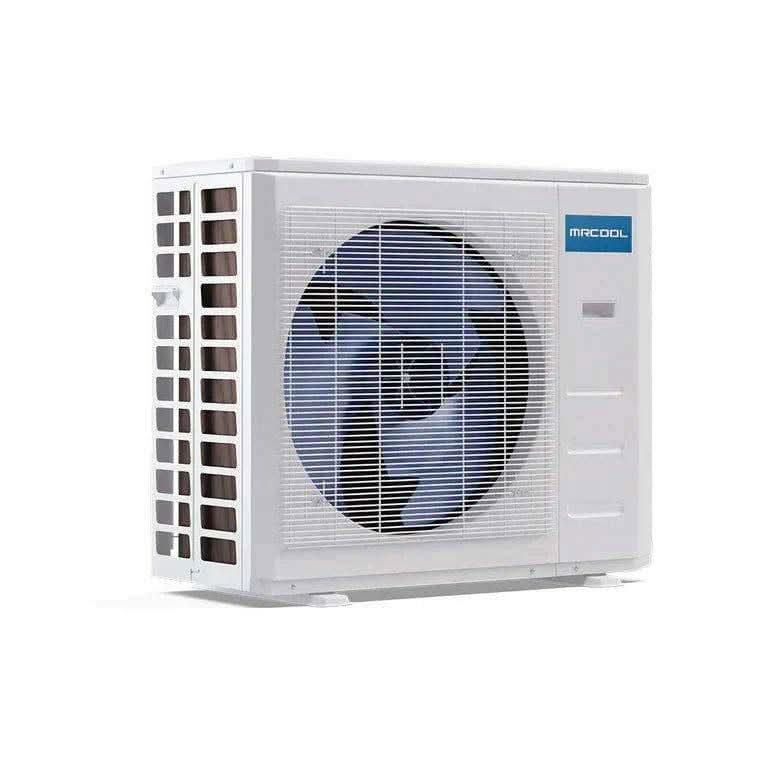

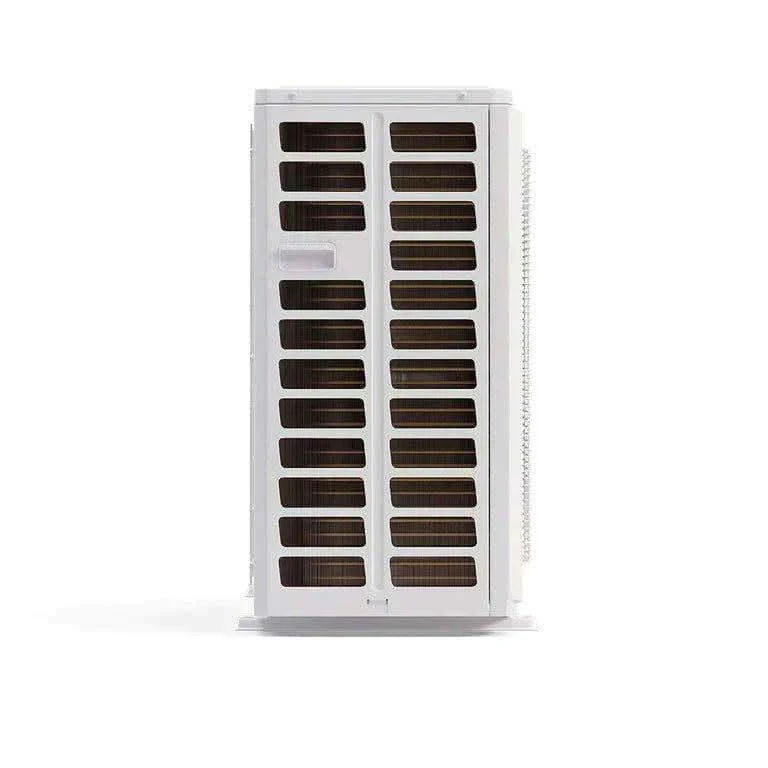

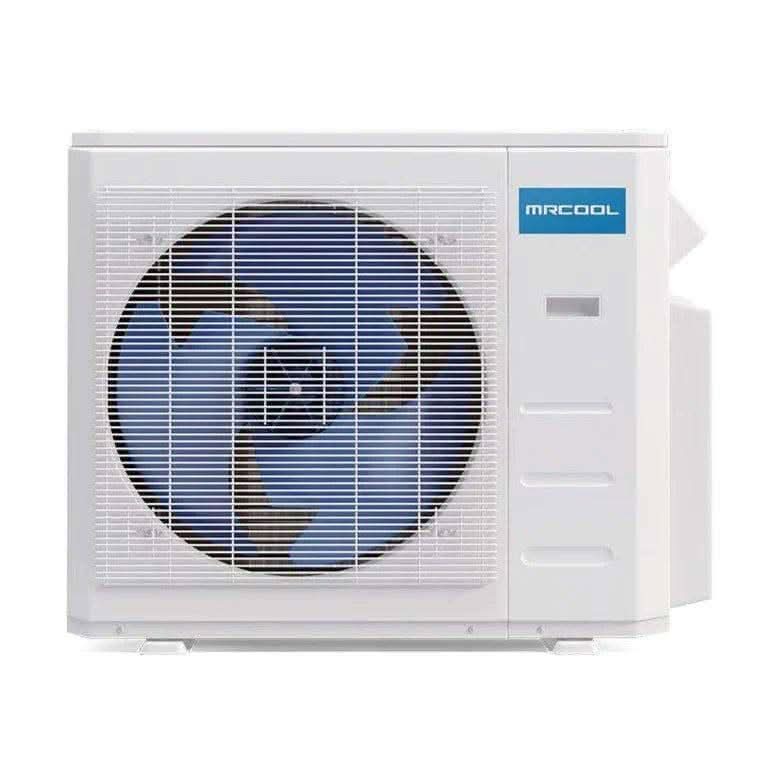

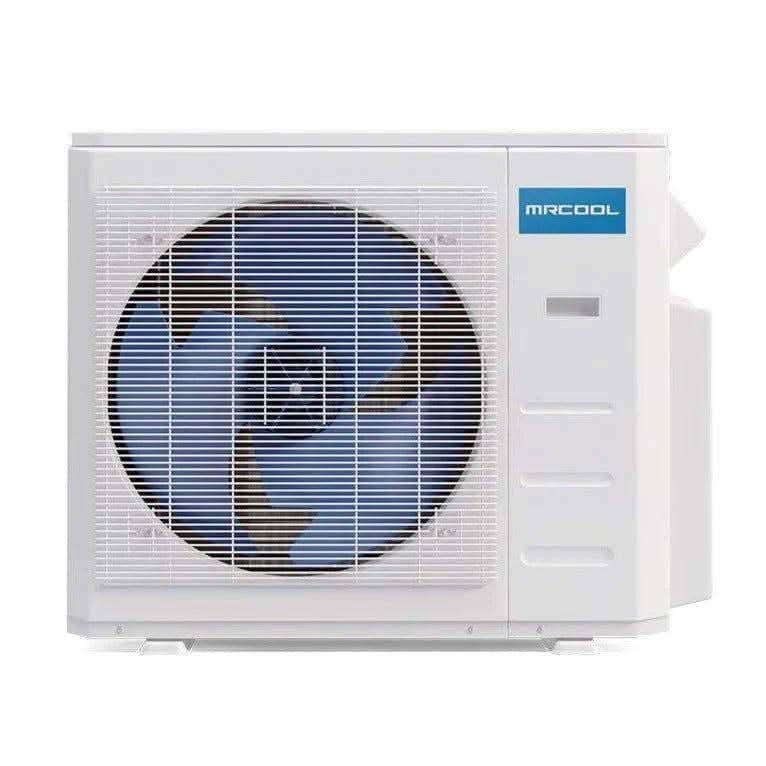

1. MRCOOL DIY 36K BTU Multi-Zone Condenser:

   • Capable of delivering up to 21.5 SEER efficiency, ensuring significant energy savings.
   • Operates effectively in extreme conditions, providing heating as low as -13°F and cooling up to 122°F.
   • Comes with a limited lifetime compressor warranty when registered with the MRCOOL Care Program, providing unmatched reliability.

2. Wall-Mounted Air Handlers:

   • 12K BTU Air Handler:
     • Covers up to 500 sq. ft., ideal for medium-sized rooms like bedrooms or home offices.
   • 24K BTU Air Handler:
     • Covers up to 1,000 sq. ft., perfect for large living spaces or open areas.
   • Both units include a sleek, compact design and versatile operating modes for tailored comfort.

3. 16 ft. Pre-Charged Line Sets:

   • Pre-filled with R-410A refrigerant for easy, hassle-free installation.

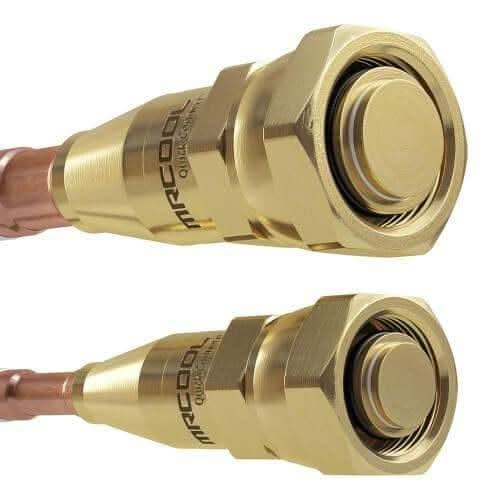

   • Includes Quick Connect® fittings for secure and efficient DIY installation.

4. Complete Installation Tools and Accessories:

   • Includes mounting plates, screws, remote controls, insulation materials, sound-deadening pads, and more.

---

Key Features

1. Energy Efficiency

• 21.5 SEER Efficiency Rating: Reduces energy consumption while maintaining optimal performance.
• Eco-Friendly Refrigerant: Utilizes R-410A, an environmentally responsible refrigerant.

2. DIY-Friendly Installation

• Pre-Charged Line Sets: Allows homeowners to set up the system without specialized tools or hiring technicians.
• Comprehensive Installation Kit: Includes everything you need, from mounting templates to quick-connect fittings.

3. Advanced Air Handler Features

• Multiple Operating Modes: Choose from Cool, Heat, Auto, Dry (dehumidify), Fan-Only, Quiet, and Sleep for personalized comfort.
• Smart Connectivity: Compatible with the Smart HVAC app, enabling remote control via your smartphone.
• Compact and Versatile Design: Installs easily on most interior walls with the included mounting plate.

4. Reliable Year-Round Performance

• Extreme Temperature Operation: Heats effectively in sub-zero temperatures as low as -13°F and cools efficiently in high temperatures up to 122°F.
• Wide Coverage: Heat and cool two distinct spaces independently with tailored comfort for each zone.

5. Quiet and Durable

• Whisper-Quiet Operation: Minimizes noise for a peaceful environment.
• Gold Fin Technology: Protects against corrosion, ensuring long-lasting durability.

---

Specifications

Condenser

• Cooling Capacity: 36,000 BTU
• Heating Capacity: 36,000 BTU
• Efficiency Ratings: SEER: 21.5, EER: 10.5
• Operating Temperatures: Heating: -13°F to 75.2°F | Cooling: 5°F to 122°F
• Voltage Requirements: 208V-230V/60HZ/27-45A
• Dimensions: 37.24"W x 16.14"D x 31.89"H
• Warranty: 7-year condenser replacement, 5-year parts

Wall-Mounted Air Handlers

• 12K BTU Air Handler:
  • Coverage Area: Up to 500 sq. ft.
  • Cooling/Heating Capacity: 12,000 BTU
  • Dimensions: 31.57"W x 7.44"D x 11.69"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Warranty: 5-year parts
• 24K BTU Air Handler:
  • Coverage Area: Up to 1,000 sq. ft.
  • Cooling Capacity: 23,000 BTU, Heating Capacity: 25,000 BTU
  • Dimensions: 42.52"W x 8.90"D x 13.19"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Warranty: 5-year parts

Line Sets

• Length: 16 feet (per zone)
• Liquid Line Size: 1/4" (9K Air Handler), 3/8" (24K Air Handler)
• Suction Line Size: 1/2" (9K Air Handler), 5/8" (24K Air Handler)
• Pre-Charged: Includes R-410A refrigerant

---

Benefits of the MRCOOL DIY 2-Zone Mini Split System

1. Customizable Comfort:

   • Independently control two zones with individual air handlers and remotes.
   • Ideal for small to large spaces, including bedrooms, offices, and open-plan living areas.

2. Smart Control:

   • Use the Smart HVAC app to monitor and adjust settings remotely.
   • Compatible with Amazon Alexa and Google Home for voice control.

3. Energy Savings:

   • High SEER rating ensures lower energy bills without sacrificing performance.
   • Sleep and Timer modes further enhance energy efficiency.

4. Quiet and Reliable Operation:

   • Designed for minimal noise, ensuring a peaceful environment in any room.
   • Backed by a comprehensive warranty for long-term peace of mind.

5. DIY Convenience:

   • Save money on installation costs with a system designed for easy setup.
   • Includes all necessary tools and accessories for a seamless installation process.

---

Perfect Applications

• Homes: Heat and cool two separate spaces, such as bedrooms, offices, or large living areas.
• Offices: Maintain comfortable temperatures in multi-zone workspaces.
• Renovations: Flexible and efficient for retrofitting older buildings or integrating HVAC into new construction projects.

---

Order Now

The MRCOOL DIY 4th Gen 36,000 BTU 2-Zone Mini Split System combines powerful performance, energy efficiency, and the convenience of DIY installation. Whether upgrading your home or outfitting a commercial space, this system delivers reliable year-round comfort.

Order today from MRCOOL DIY Direct and enjoy hassle-free heating and cooling for your spaces!
