MRCOOL DIY Mini Split - 48,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM248HPW01C00

MRCOOL DIY Mini Split - 48,000 BTU 2-Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit (DIYM248HPW01C00)

The MRCOOL DIY 4th Gen 48,000 BTU 2-Zone Mini Split System delivers powerful, energy-efficient heating and cooling for two separate spaces. This system includes a 48,000 BTU multi-zone condenser, two 24K BTU wall-mounted air handlers, and two pre-charged 16 ft. line sets. With DIY installation, advanced Wi-Fi connectivity, and versatile operating modes, this system is ideal for homeowners seeking a reliable and efficient HVAC solution.

---

What’s Included

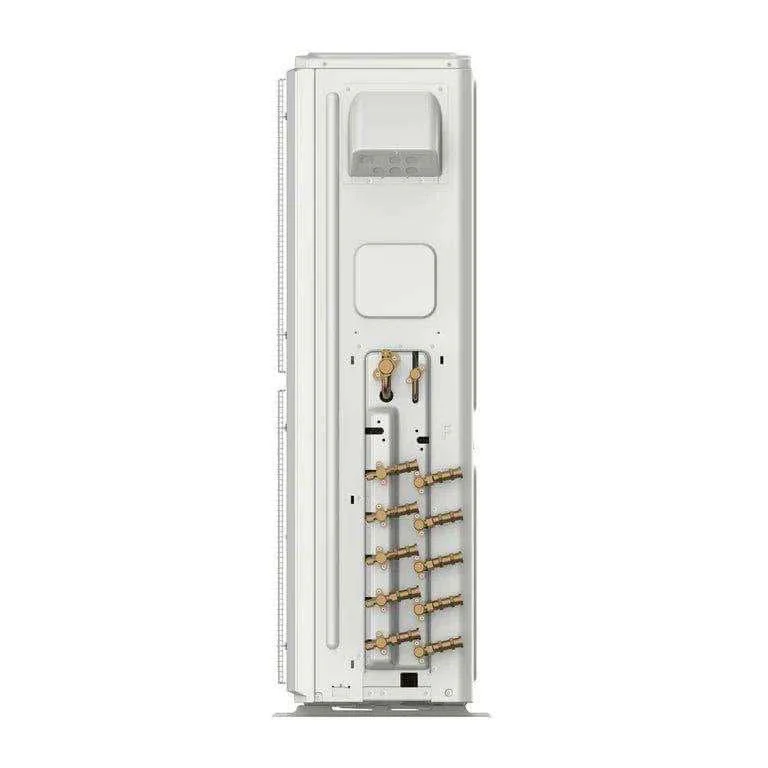

1. MRCOOL DIY 48K BTU Multi-Zone Condenser:

   • Capable of producing up to a 20.5 SEER efficiency rating, reducing energy costs.
   • Operates effectively in extreme temperatures, heating as low as 5°F and cooling up to 122°F.
   • Includes a limited lifetime compressor warranty when registered with the MRCOOL Care Program.

2. Wall-Mounted Air Handlers:

   • 24K BTU Air Handler (Quantity: 2):
     • Covers up to 1,000 sq. ft. per unit, perfect for large living spaces or open areas.
   • Both units include multiple operating modes, compact designs, and smart control capabilities.

3. 16 ft. Pre-Charged Line Sets:

   • Pre-filled with R-410A refrigerant for an easy and reliable installation process.

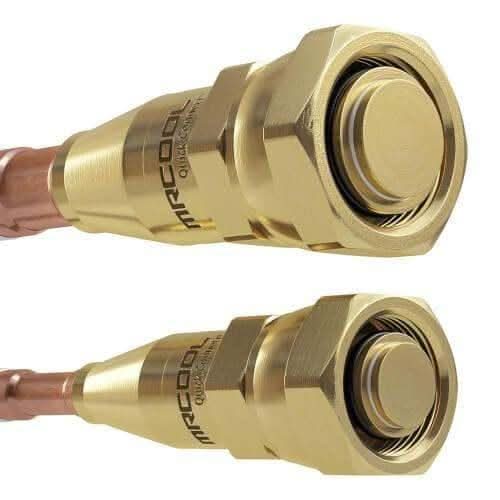

   • Quick Connect® fittings ensure a secure and efficient DIY setup.

4. Complete Installation Kit:

   • Includes mounting plates, screws, insulation materials, and sound-deadening pads for a seamless installation.

---

Key Features

1. Energy Efficiency

• 20.5 SEER Efficiency Rating: Maximizes performance while minimizing energy costs.
• Eco-Friendly Refrigerant: Utilizes R-410A for efficient and environmentally responsible operation.

2. DIY-Friendly Installation

• Pre-Charged Line Sets: No specialized tools or HVAC technicians required.
• Comprehensive Installation Kit: Includes all necessary tools and guides for a hassle-free setup.

3. Advanced Air Handler Features

• Multiple Operating Modes: Cool, Heat, Auto, Dry (dehumidify), Fan-Only, Quiet, and Sleep for customizable comfort.
• Smart Connectivity: Compatible with the Smart HVAC app for remote control via smartphones or tablets.
• Compact and Stylish Design: Fits seamlessly into any interior space with included mounting hardware.

4. Reliable Year-Round Performance

• Wide Temperature Range: Operates efficiently in extreme climates, from 5°F to 122°F for cooling and down to 5°F for heating.
• Independent Zone Control: Customize the temperature and settings in two separate spaces.

5. Quiet and Durable

• Whisper-Quiet Operation: Provides a peaceful environment, perfect for bedrooms and offices.
• Gold Fin Technology: Protects against corrosion for long-lasting performance.

---

Specifications

Condenser

• Cooling Capacity: 48,000 BTU
• Heating Capacity: 48,000 BTU
• Efficiency Ratings: SEER: 20.5, EER: 11
• Operating Temperatures: Heating: 5°F to 75.2°F | Cooling: 5°F to 122°F
• Voltage Requirements: 208V-230V/60HZ/40-60A
• Dimensions: 37.48"W x 16.34"D x 52.48"H
• Warranty: 7-year condenser replacement, 5-year parts

Wall-Mounted Air Handlers

• 24K BTU Air Handlers (2 Units):
  • Coverage Area: Up to 1,000 sq. ft. per unit
  • Cooling/Heating Capacity: 24,000 BTU
  • Dimensions: 42.52"W x 8.90"D x 13.19"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Warranty: 5-year parts

Line Sets

• Length: 16 feet (per zone)
• Liquid Line Size: 3/8"
• Suction Line Size: 5/8"
• Pre-Charged: Includes R-410A refrigerant

---

Benefits of the MRCOOL DIY 2-Zone Mini Split System

1. Customizable Comfort:

   • Independently control two zones with individual air handlers and remotes.
   • Ideal for large areas such as living rooms, open-plan spaces, or master suites.

2. Smart Control:

   • Monitor and adjust settings remotely using the Smart HVAC app.
   • Compatible with Amazon Alexa and Google Home for voice-activated control.

3. Energy Savings:

   • High SEER rating ensures reduced utility bills without compromising comfort.
   • Timer and Sleep modes optimize energy efficiency during non-peak hours.

4. Quiet and Reliable Operation:

   • Designed for minimal noise, ensuring a peaceful environment in any space.
   • Durable construction with Gold Fin Technology to resist corrosion.

5. DIY Convenience:

   • Avoid professional installation costs with a system designed for simple setup.
   • Includes all tools and accessories needed for a stress-free experience.

---

Perfect Applications

• Homes: Heat and cool two separate spaces, such as bedrooms, living rooms, or home offices.
• Offices: Maintain comfortable temperatures in large, distinct work areas.
• Renovations: Flexible for retrofitting older buildings or integrating HVAC into new constructions.

---

Order Now

The MRCOOL DIY 4th Gen 48,000 BTU 2-Zone Mini Split System is a versatile, energy-efficient, and DIY-friendly solution for your heating and cooling needs. Perfect for homeowners and businesses alike, this system delivers year-round comfort with ease.

Order today from MRCOOL DIY Direct and enjoy reliable, hassle-free climate control for your space!
