MRCOOL DIY Mini Split - 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM236HPW03C22
MRCOOL DIY Mini Split - 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM236HPW03C22
This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat two different rooms. You'll be sent: DIY 36,000 BTU Multi-Zone Condenser, two 18,000 BTU Wall Mounted Air Handler, two Remotes, and two 50 ft. Installation Kits. The best part about all of this is that you can install it yourself!

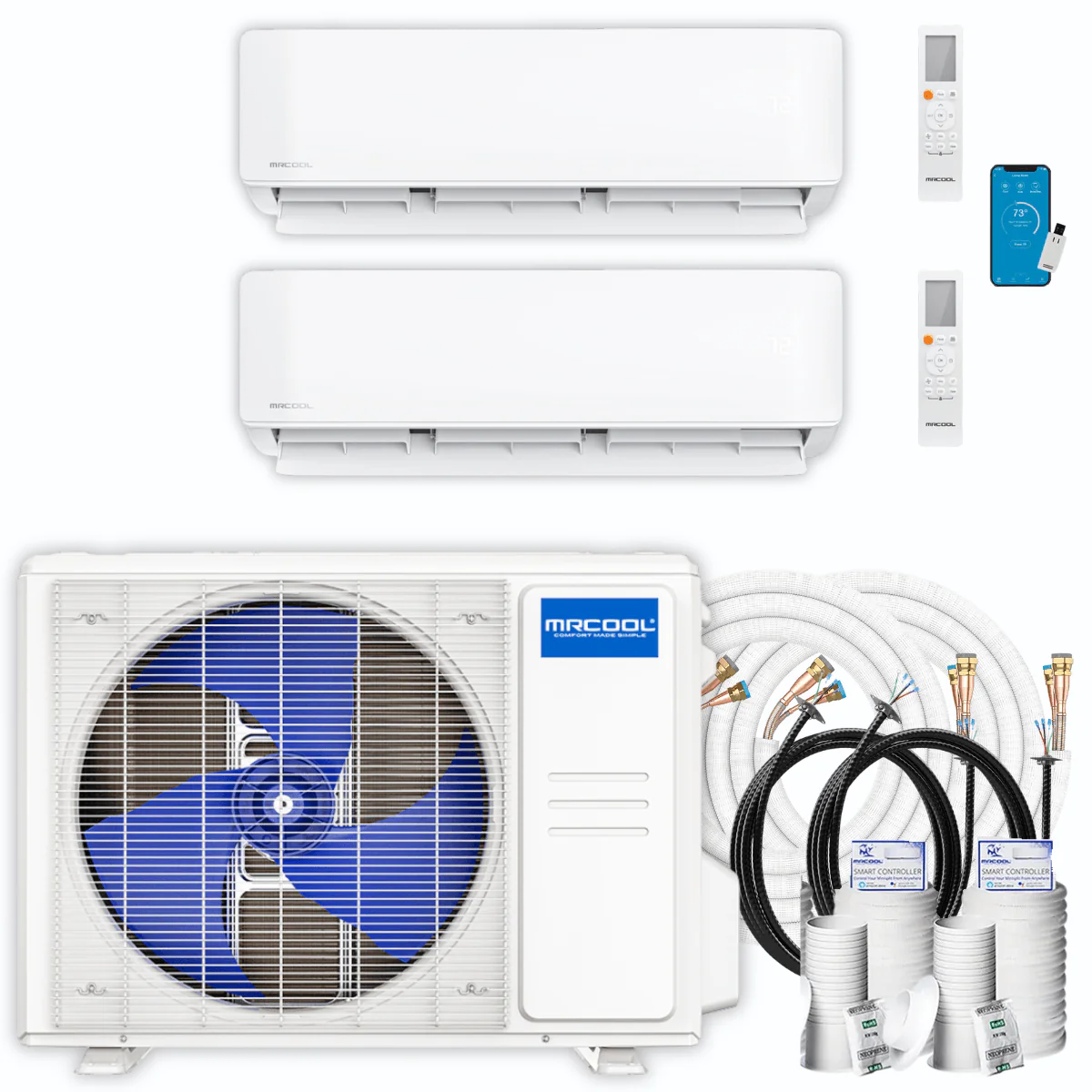

Package Includes
- MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series, DIY-MULTI4-36HP230C
- MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25 (x2)
- MRCOOL DIY 50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY50-1412C (x2)

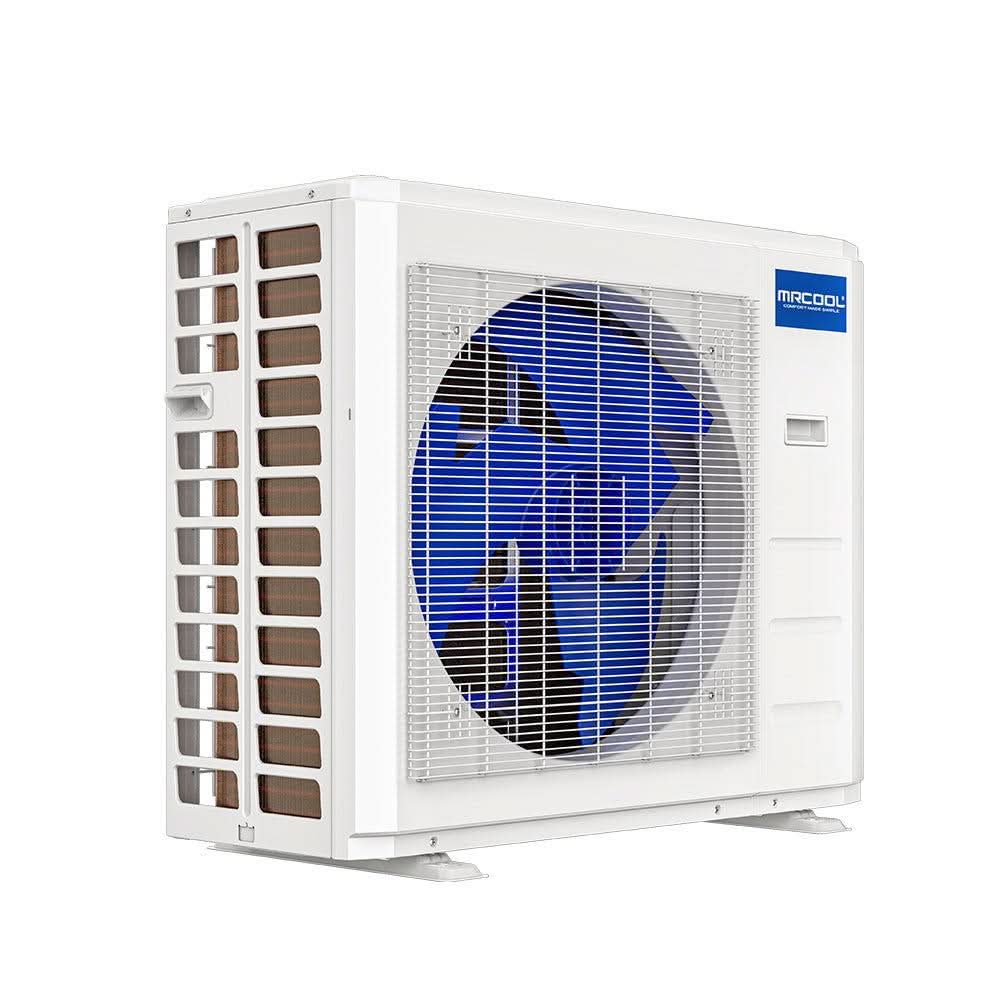

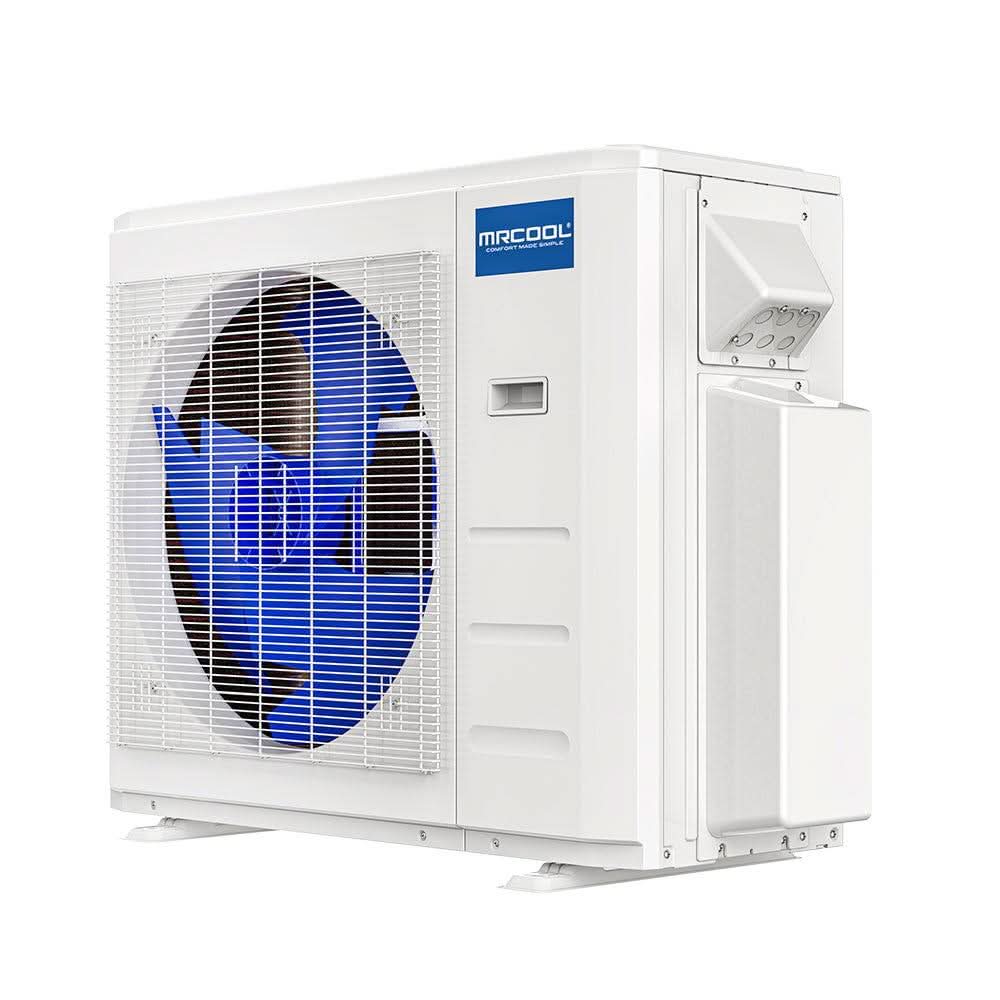

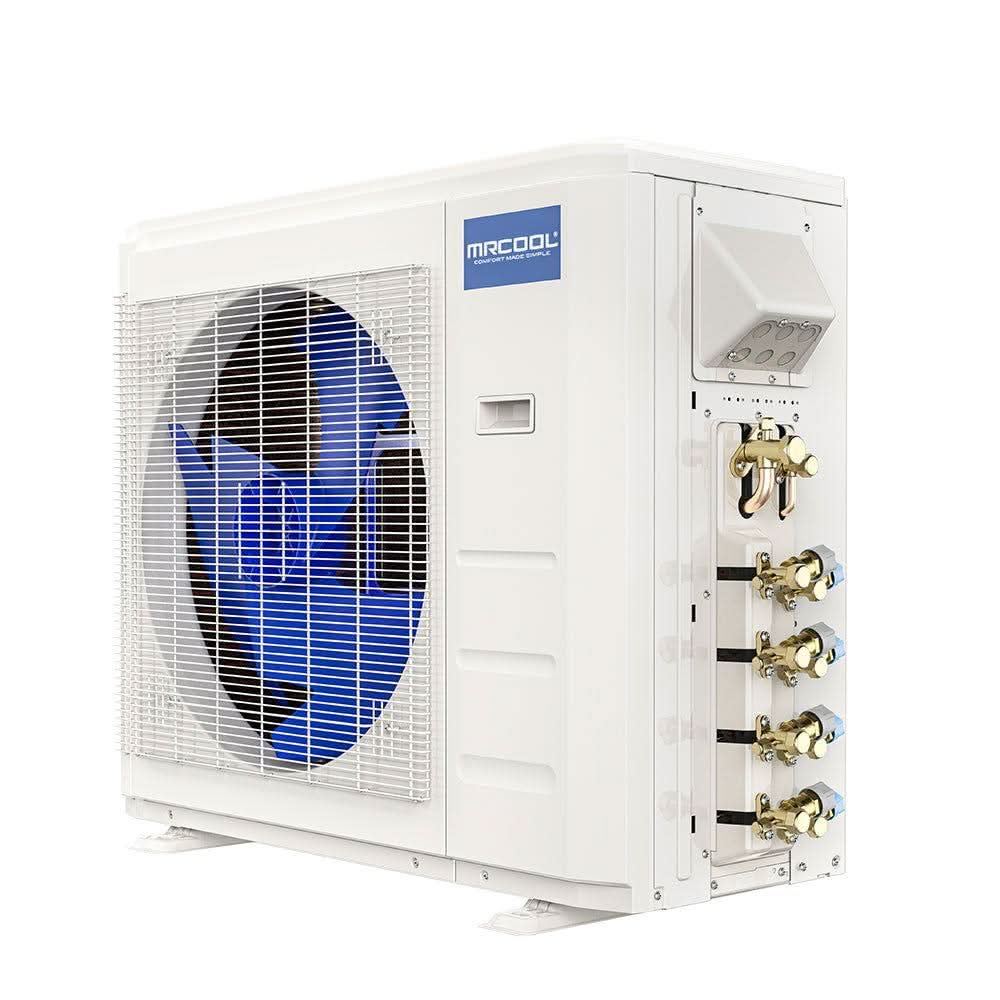

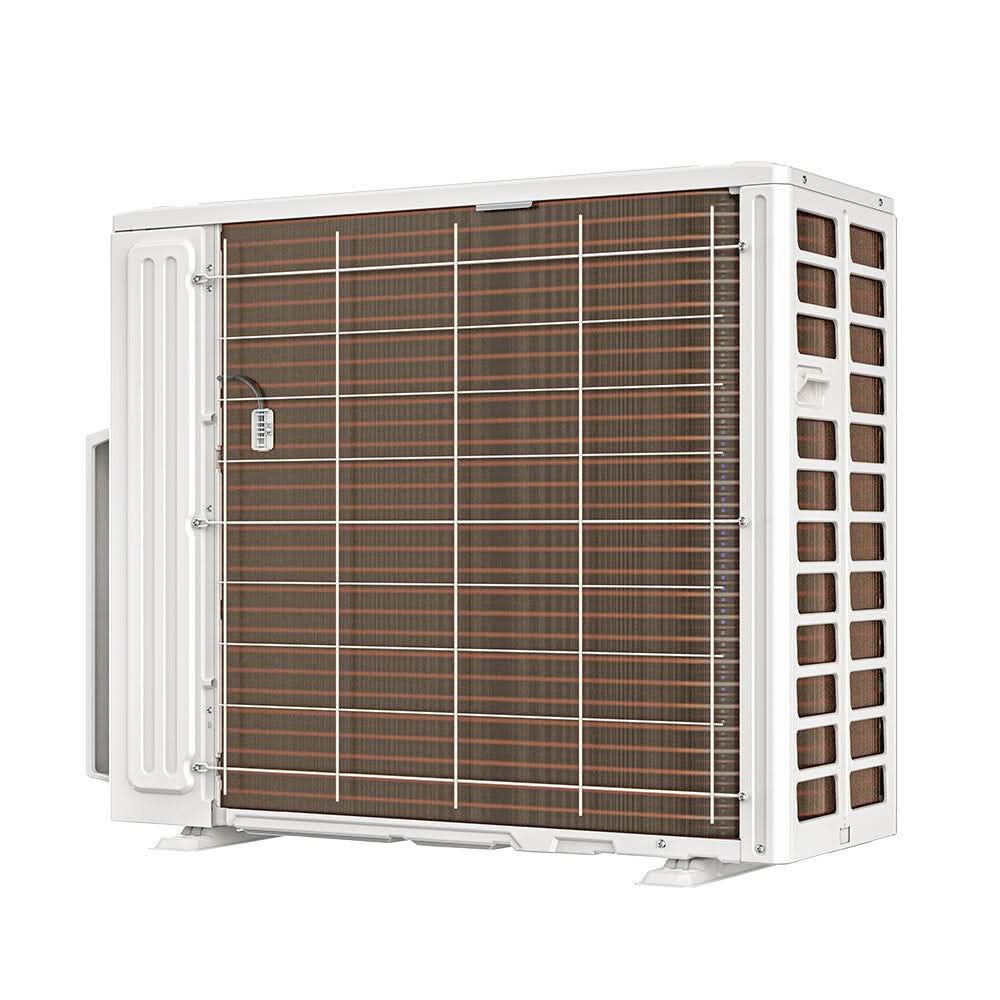

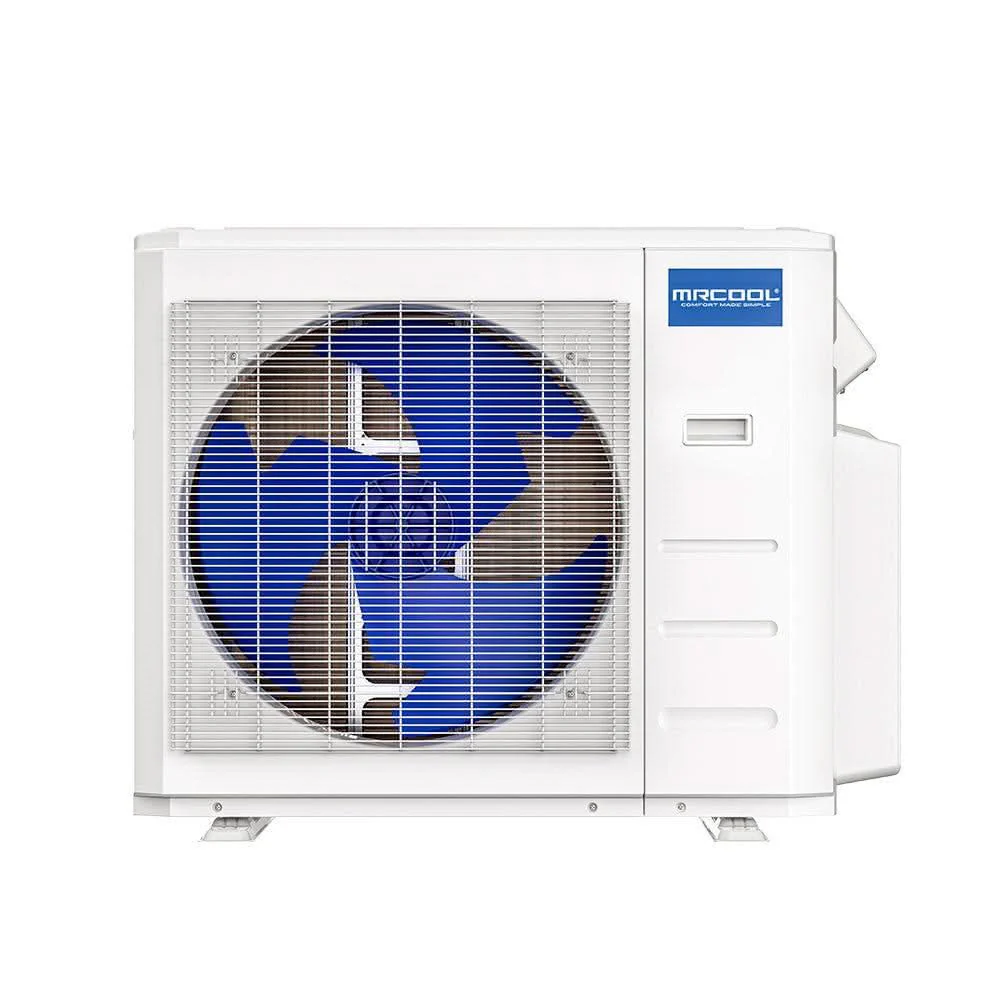

Condenser
- Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive
- 21.5 SEER efficiency rating.
- Works In All Environments. The ability to heat even when temperatures drop to -13°F.
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

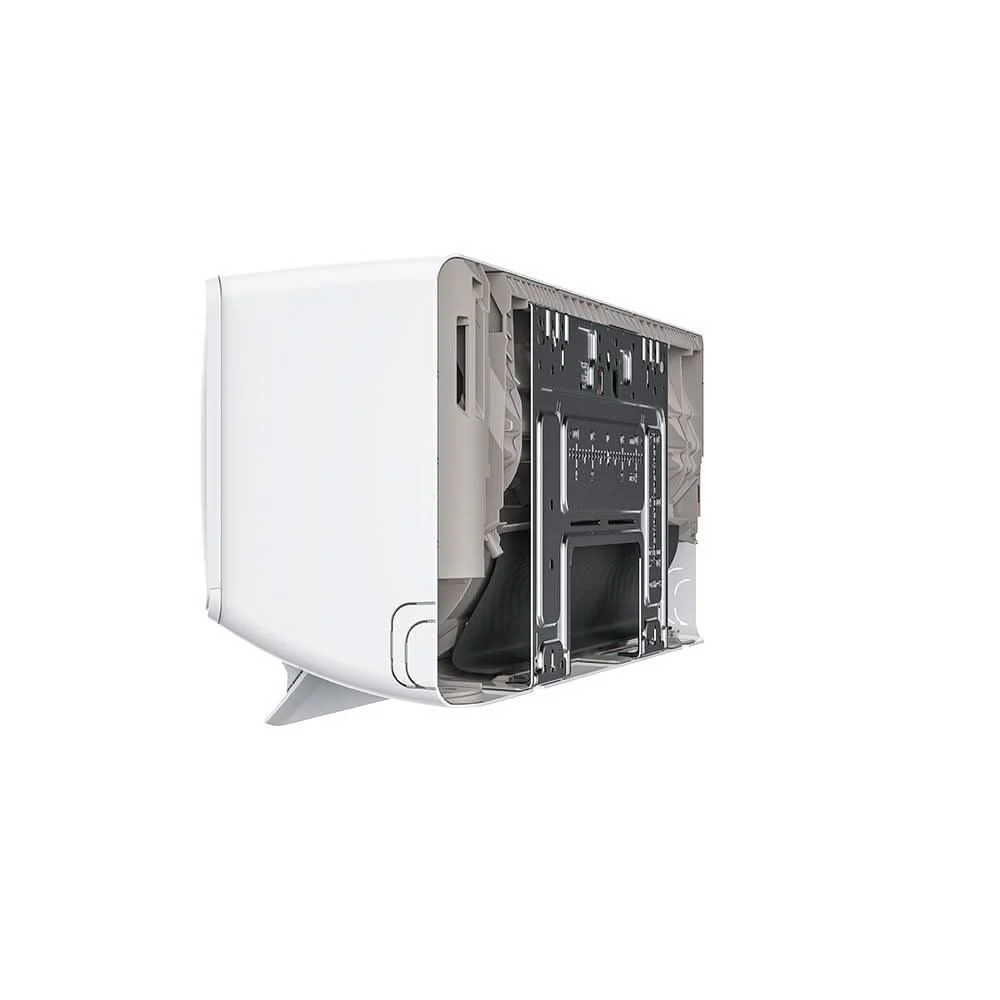

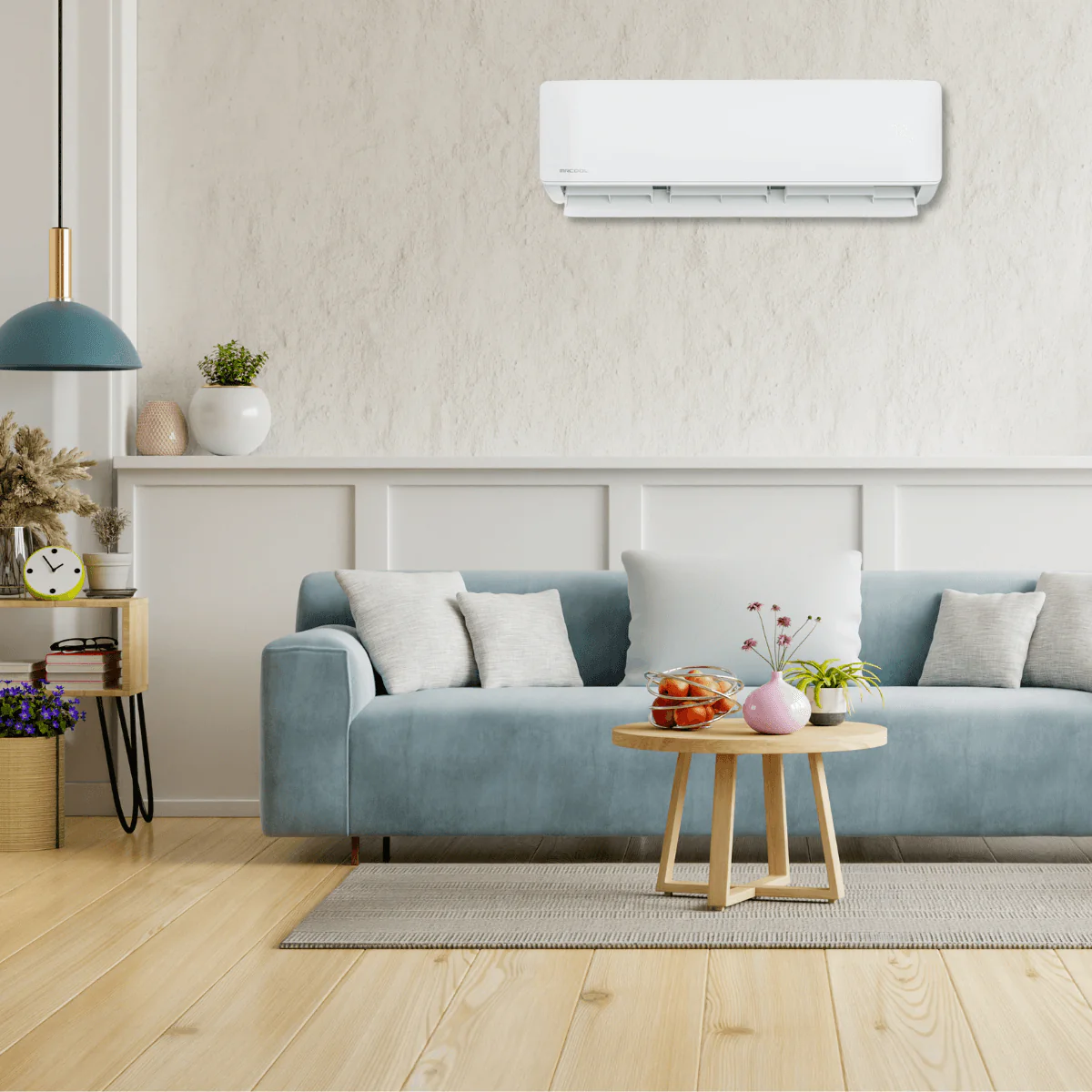

Air Handler, 18K BTU, Quantity 2
- Large Coverage Area. Handler covers an area up to
- 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

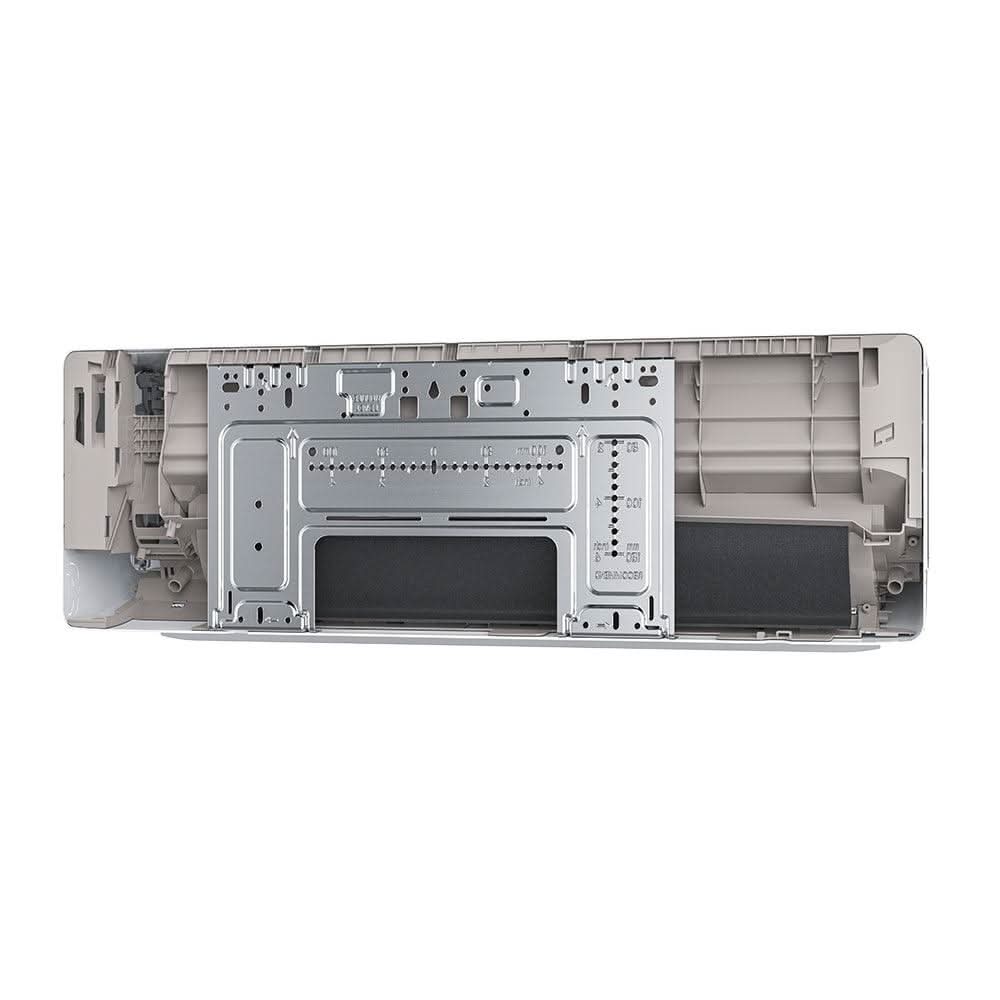

- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

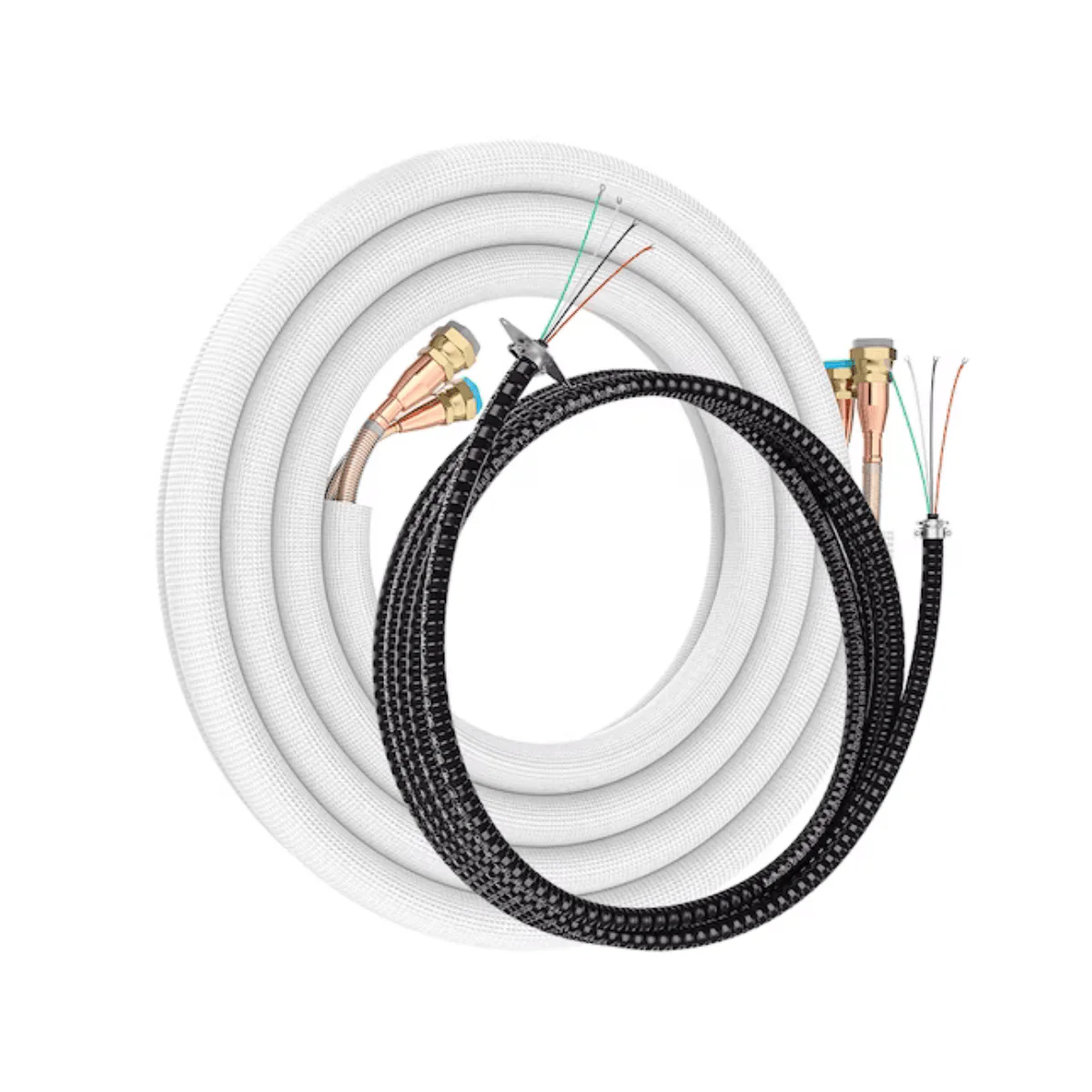

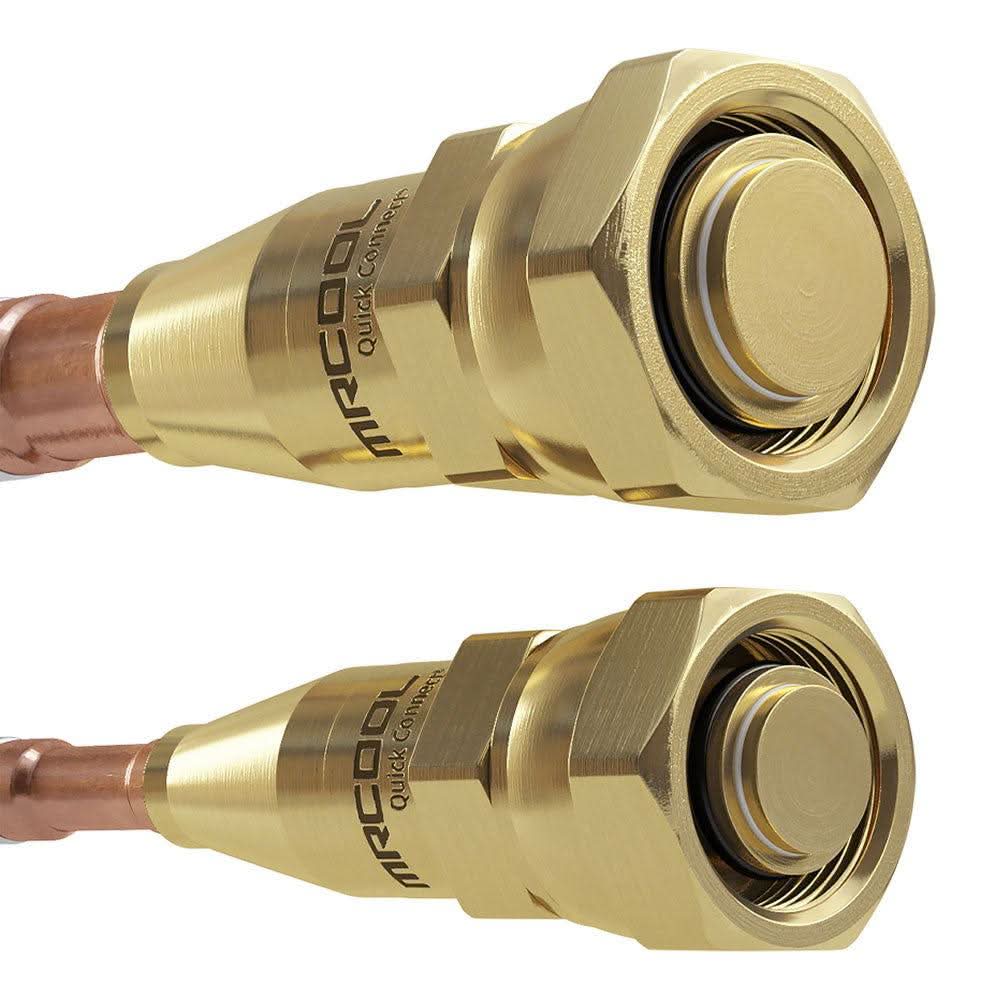

Line Set 50 ft., Quantity 2
- This 50 ft. copper line set connects the 4th Generation MRCOOL Condenser to the MR COOL Air Handlers - 9K, 12K and 18K.
- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
PRODUCT SPECIFICATIONS:
Condenser Specifications
| Product Dimensions | 37.24'W x 16.14'D x 31.89'H |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Zone Capacity | 4 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
| SEER | 21.5 |
| EER | 10.5 |
| Voltage | Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 18K BTU
| Product Dimensions | 42.52'W x 8.90'D x 13.19'H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
| Length | 50 Feet |
| Liquid Line Size | 1/4' |
| Suction Line Size | 1/2' |
